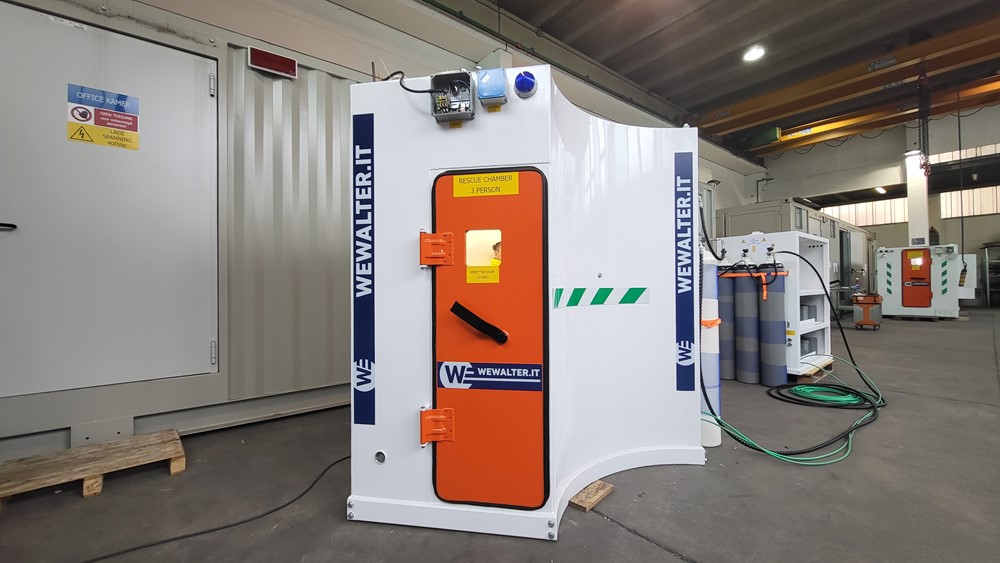

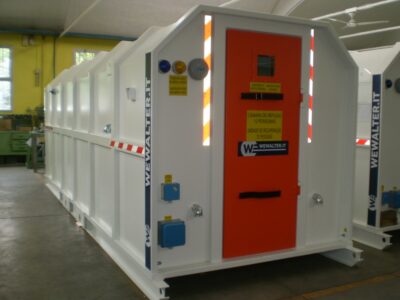

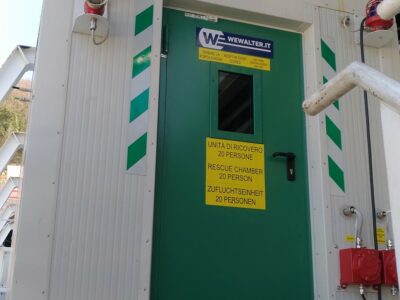

Refuge Chambers

FULLY CUSTOMISABLE​

  • Transportable on a cart, independent wheels or sled
  • Automatic management of survival equipment
  • Quick start-up
  • Closed-loop operation
  • Remote monitoring
  • Customised layout
  • Suitable for classified areas

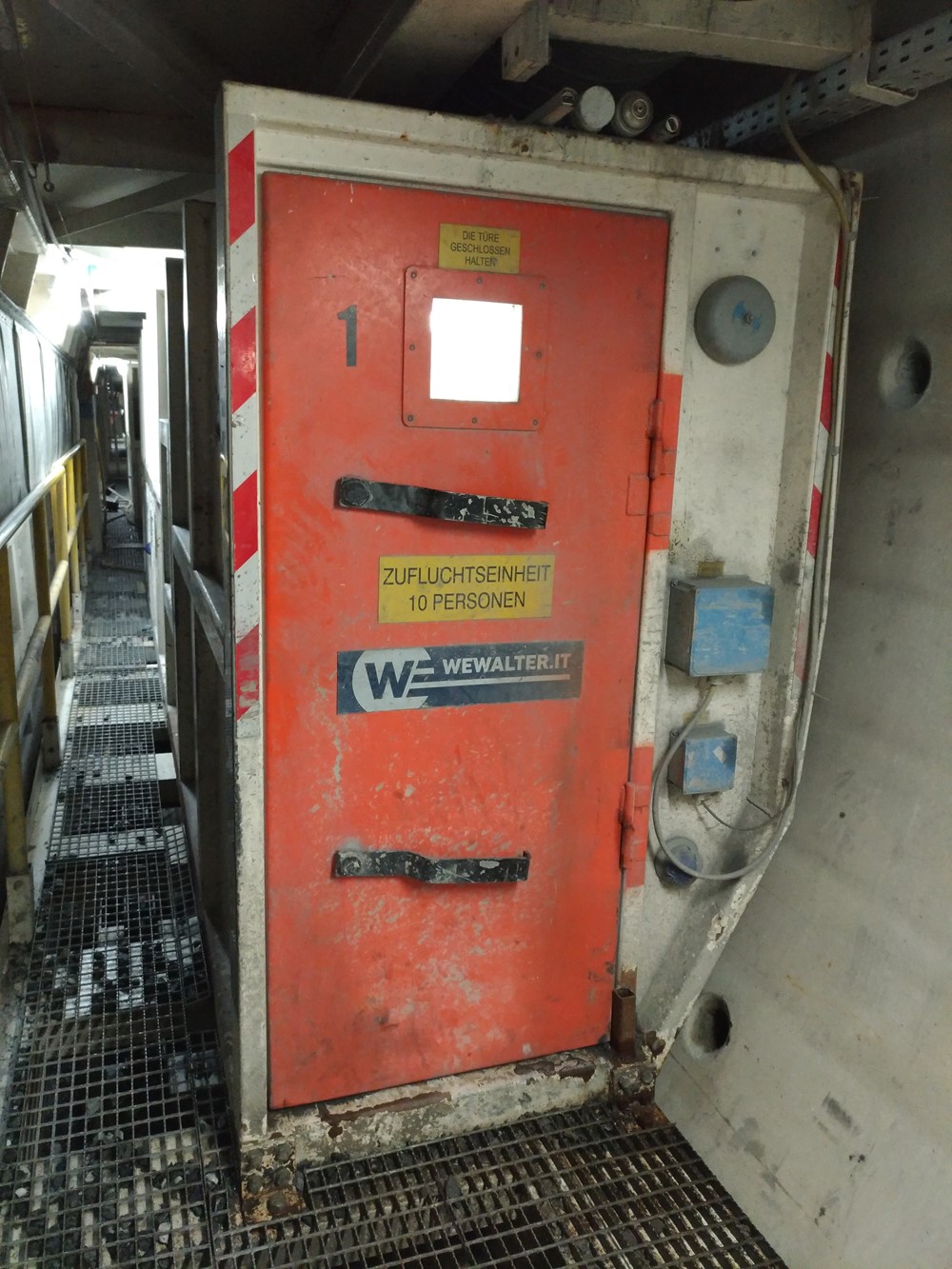

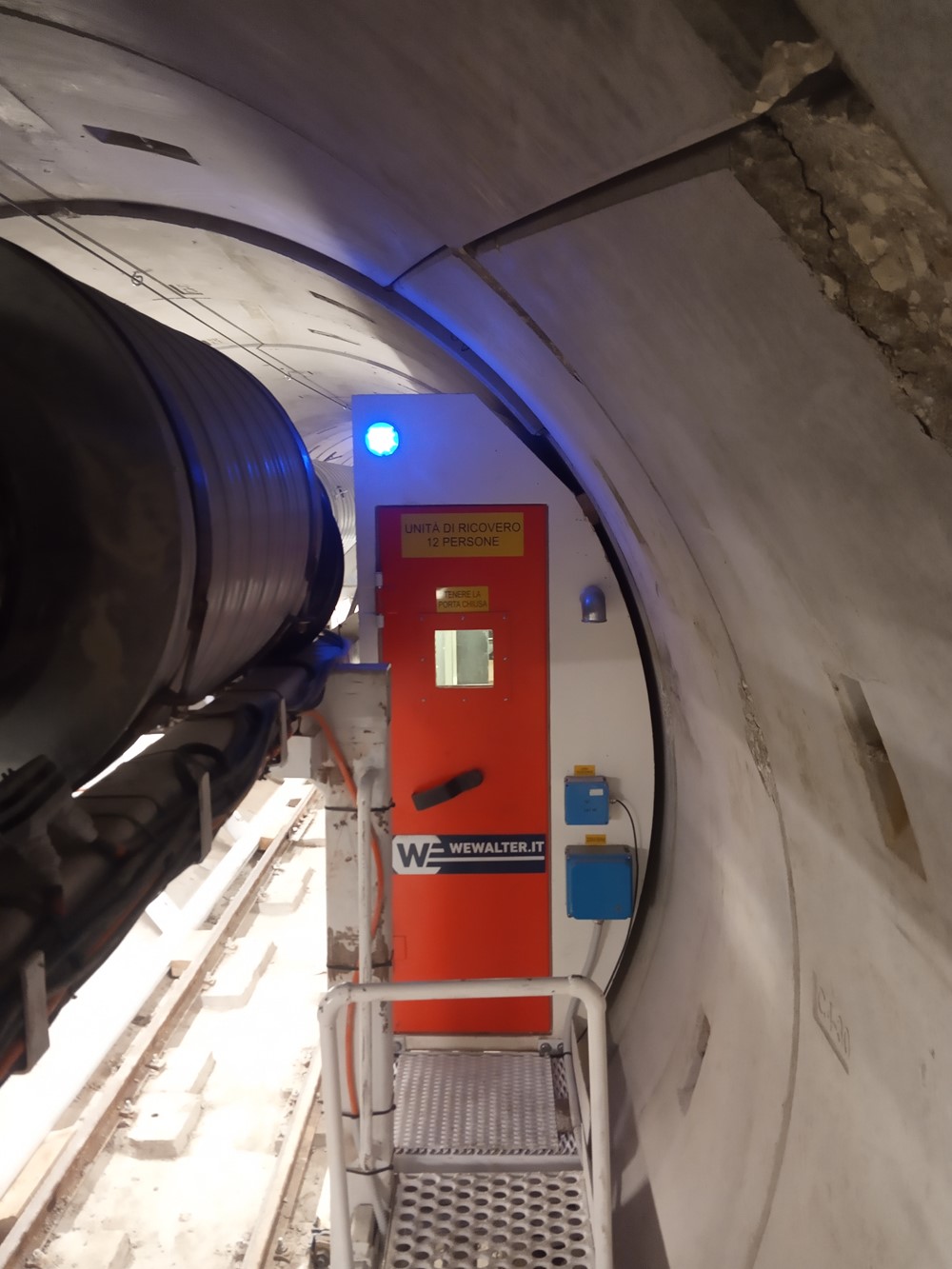

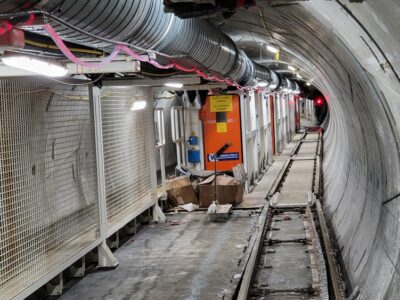

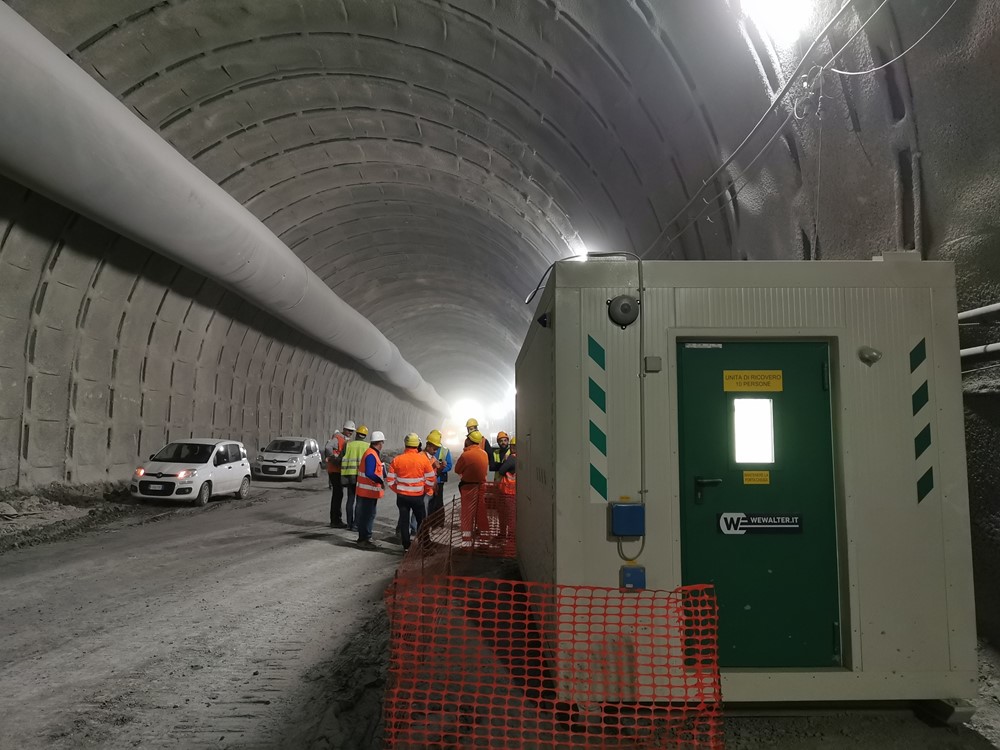

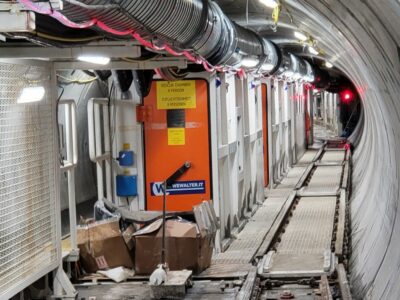

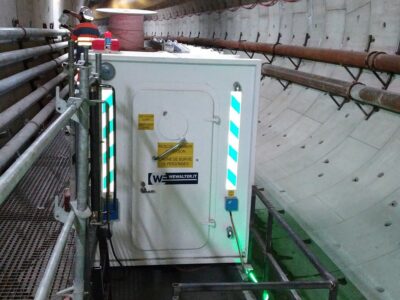

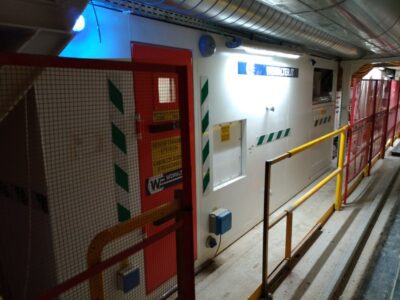

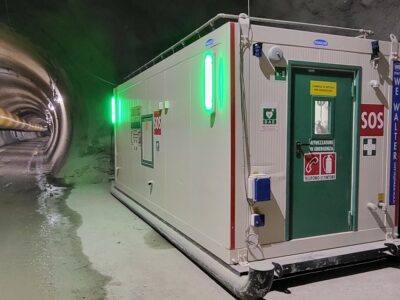

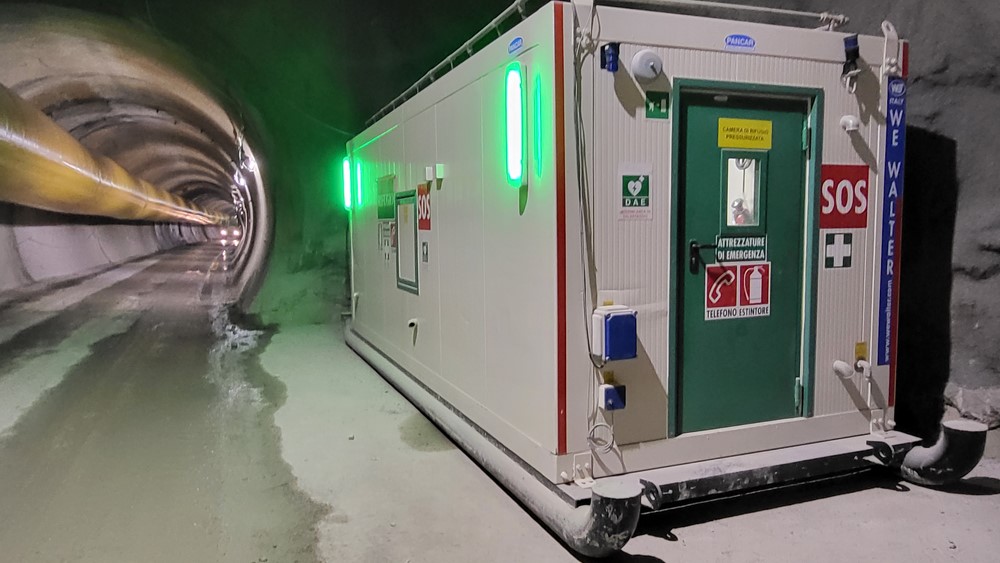

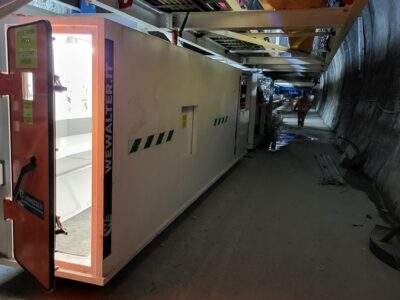

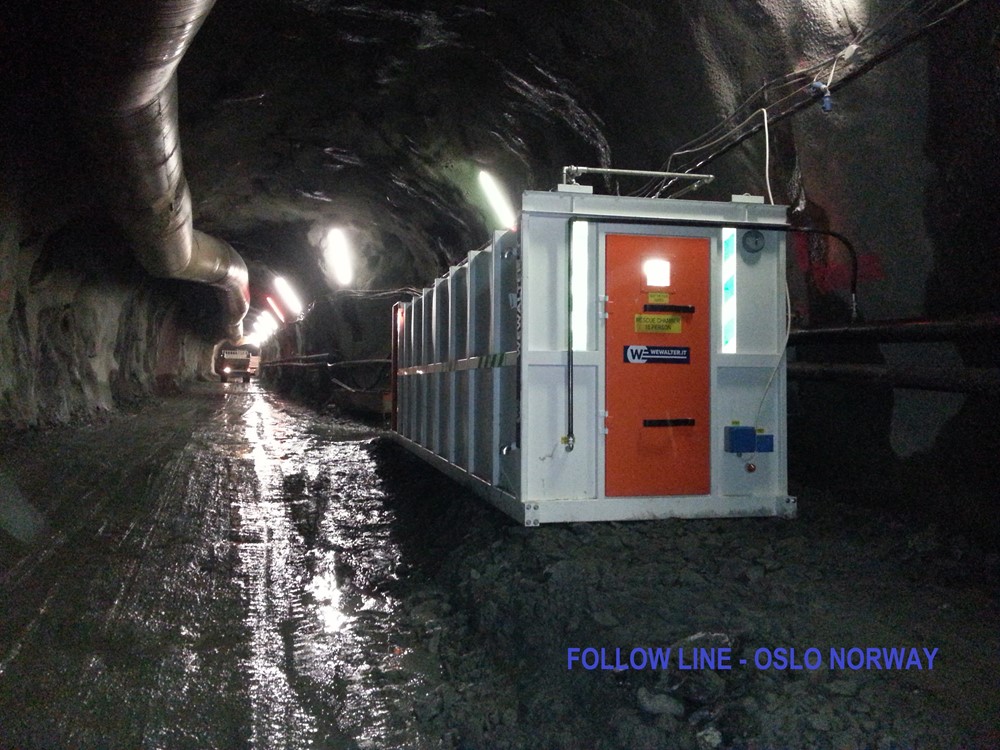

AREAS OF USE: Tunnels, mines, classified zones, offshore/inshore Our Rescue Arks comply with major international standards such as: ATEX, IECEX, UL, CSA and NEC. PLC: all essential systems are managed by a user-friendly man-machine interface. All data can be accessed remotely using the main communication standards

EMERGENCY BREATHING SYSTEM

Breathing air is supplied through a combination of CO-CO2 elimination and O2 compensation.
An automatic monitoring system ensures constant air quality by measuring CO, CO2 and oxygen levels.
The pollutant abatement system uses pre-packaged cartridges to eliminate CO and CO2, while special filters capture viruses, bacteria, mould and pollen.
Oxygen is released automatically through internal oxygen cylinders.
All systems are efficiently managed by a PLC.

OVERPRESSURE SYSTEM

The rescue ark operates under positive pressure to prevent the introduction of gas, dust and smoke. This positive pressure is maintained using compressed air from an external source.
In case of an interruption to the external supply, compressed air cylinders take over to maintain pressurisation via an automatic control system.

QUICK ACTIVATION

The refuge chamber can be activated within minutes. It requires minimal human intervention.

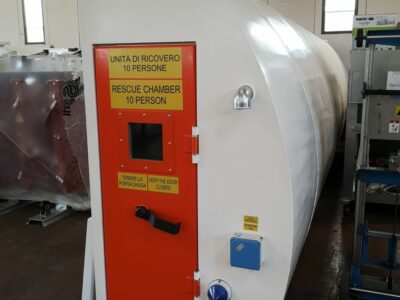

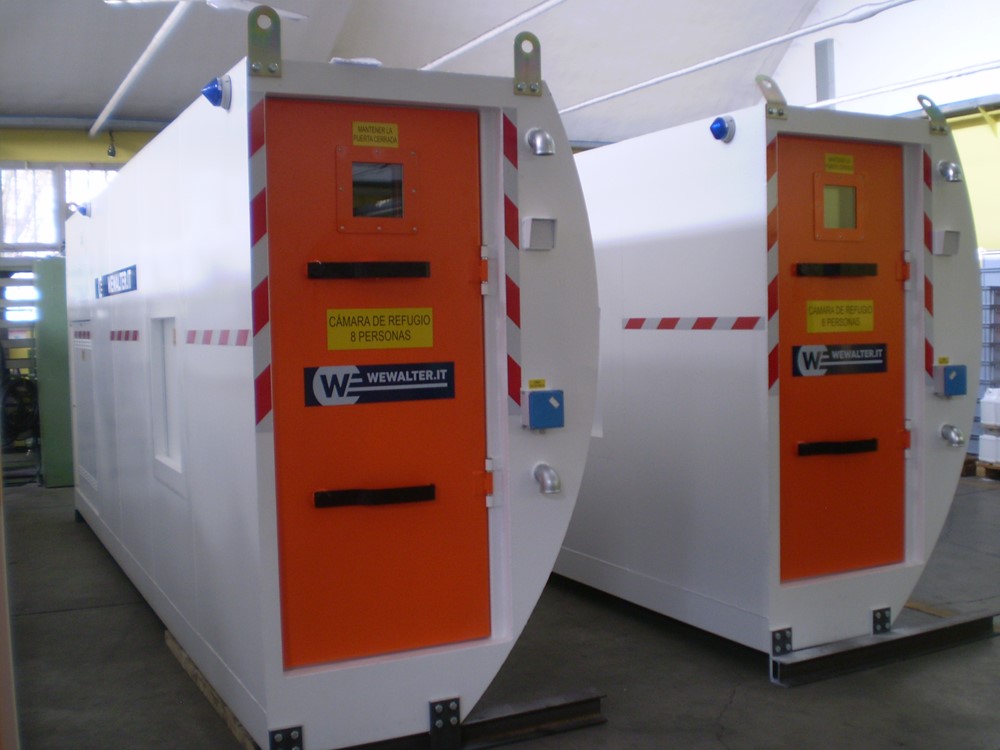

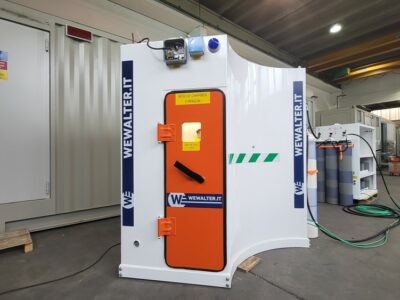

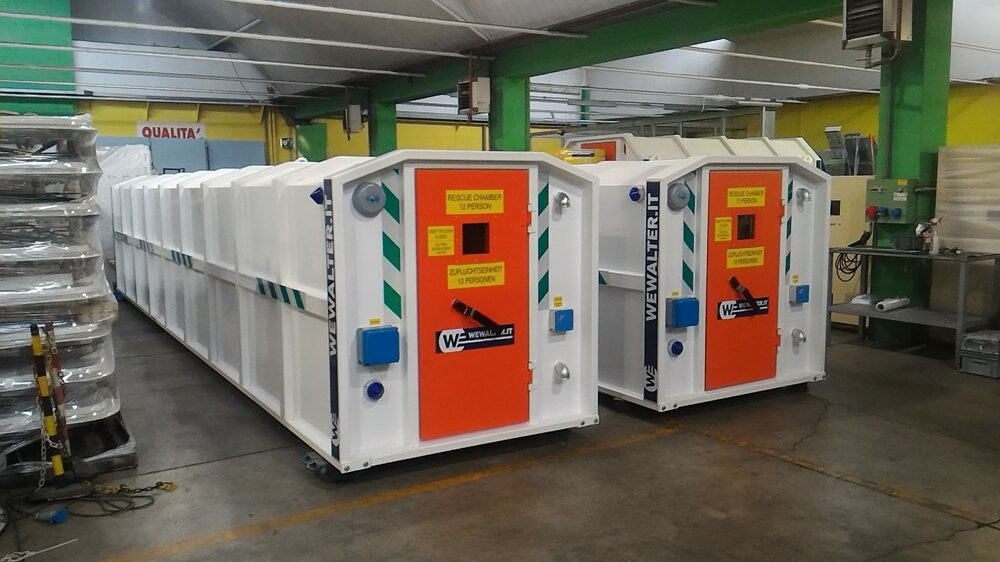

STANDARD REFUGE CHAMBERS

  • from 6 to 30 occupants
  • up to 236 hours of autonomy
  • defined shape and dimensions

CUSTOM REFUGE CHAMBERS

  • more than 30 occupants
  • up to 96 hours of autonomy
  • specially designed shape and dimensions
